$1,500.00
The X8m LED video controller delivers 5.24 million pixel capacity, 4K/2K input flexibility, and advanced multi-window processing for powerful, high-quality LED display performance.
10 features of the X8m
- Supports resolutions up to 4096×2160 at 60Hz
- 4K inputs: DP1.2 and HDMI 2.0, plus 2K inputs: 4× HDMI 1.4
- 8 Gigabit Ethernet outputs with 5.24 million pixel capacity
- Independent audio input and output with HDMI/DP audio decoding
- Supports up to 6 windows with overlapping layers and flexible arrangements
- Seamless cropping, scaling, and switching with minimum window size of 64×64
- Precise brightness, color temperature, and grayscale adjustments at low brightness
- Genlock synchronization for stable, smooth display performance
- Supports saving and recalling up to 128 preset scenes
- Multiple control options: USB, RS232, LAN, and app-based management
Available on backorder
Description

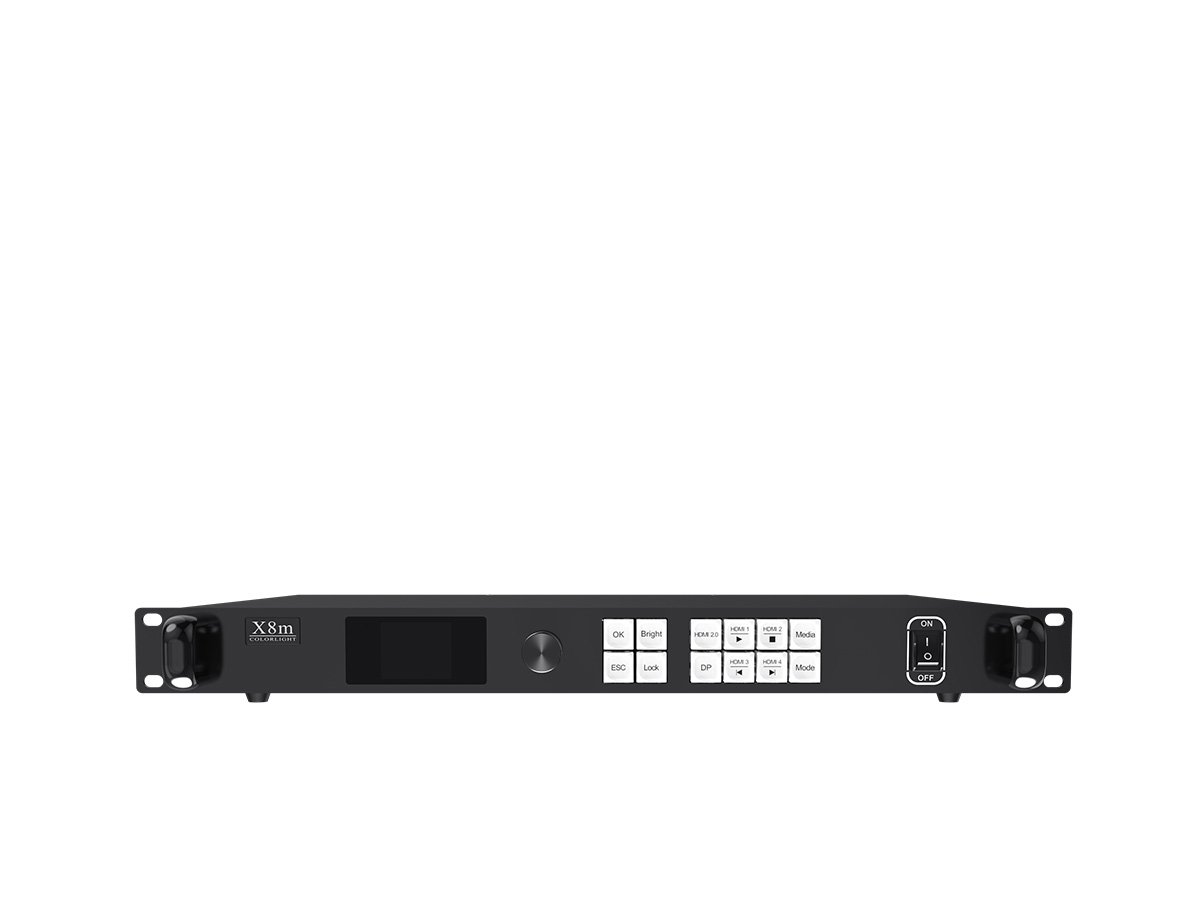

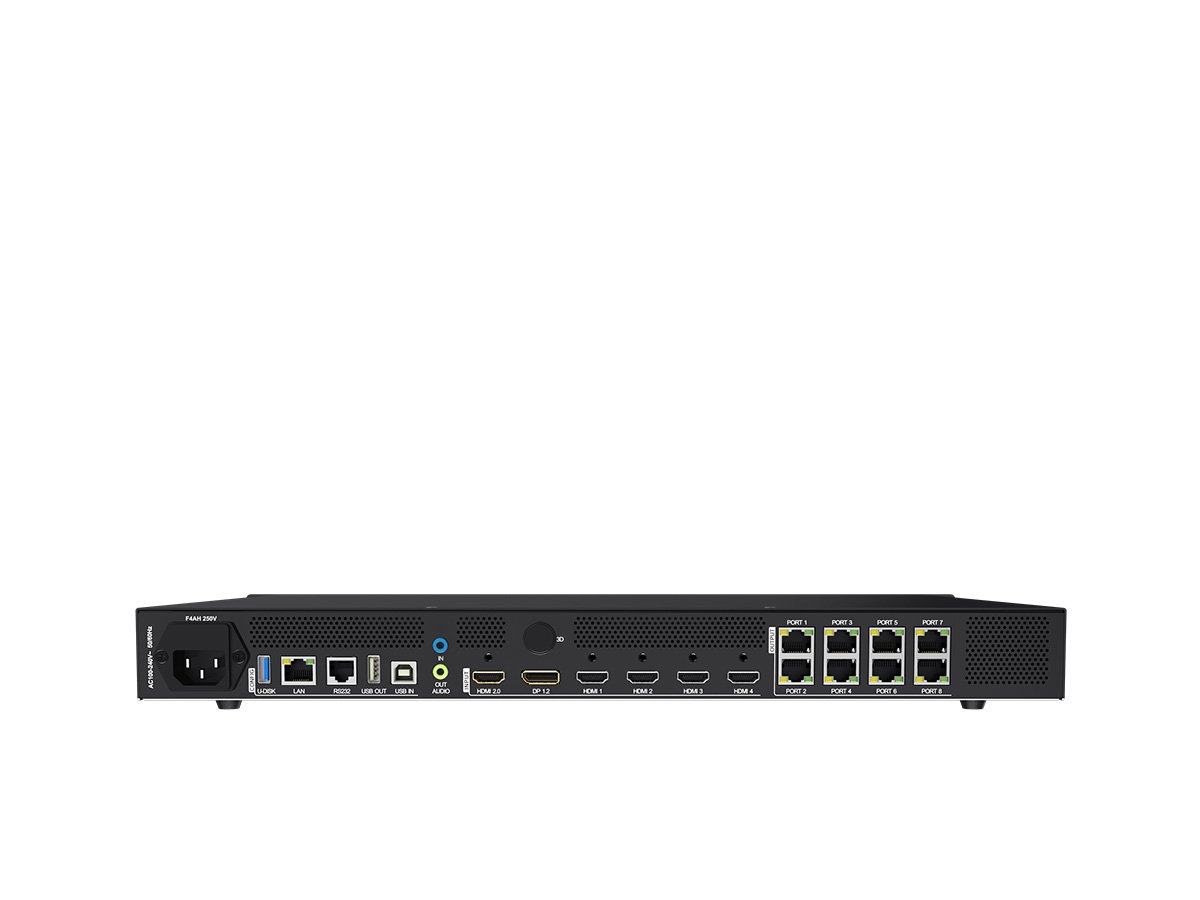

The X8m is an ultra-4K LED video controller designed to deliver exceptional input flexibility, powerful processing, and versatile output options. Supporting both 4K and 2K video inputs, it offers ports including DP1.2, HDMI 2.0, and HDMI 1.4, along with a USB drive input for convenient playback and upgrades. With a maximum load capacity of 5.24 million pixels and 8 Gigabit Ethernet outputs, the X8m provides reliable performance for mid-to-large LED display installations. It also includes independent audio input and output, plus HDMI and DP audio decoding for seamless integration.
The X8m supports up to six windows with overlapping layers, enabling creative screen layouts and multi-source display. Features such as cropping, scaling, seamless switching, grayscale optimization at low brightness, and precise brightness and color temperature adjustments ensure consistent image quality across applications. Additional functions include Genlock synchronization, 3D support, saving and recalling up to 128 scenes, and full control via USB, RS232, LAN, or app-based platforms. With its balance of capacity, advanced functions, and user-friendly management, the X8m is ideal for commercial displays, events, and installations requiring reliable high-resolution video processing.
Additional information
| Weight | 9.17 lbs |
|---|---|
| Dimensions | 20.6 × 13.4 × 3.7 in |
| MSRP | $1,500 |
| Manual | Download Manual |
