$3,000.00

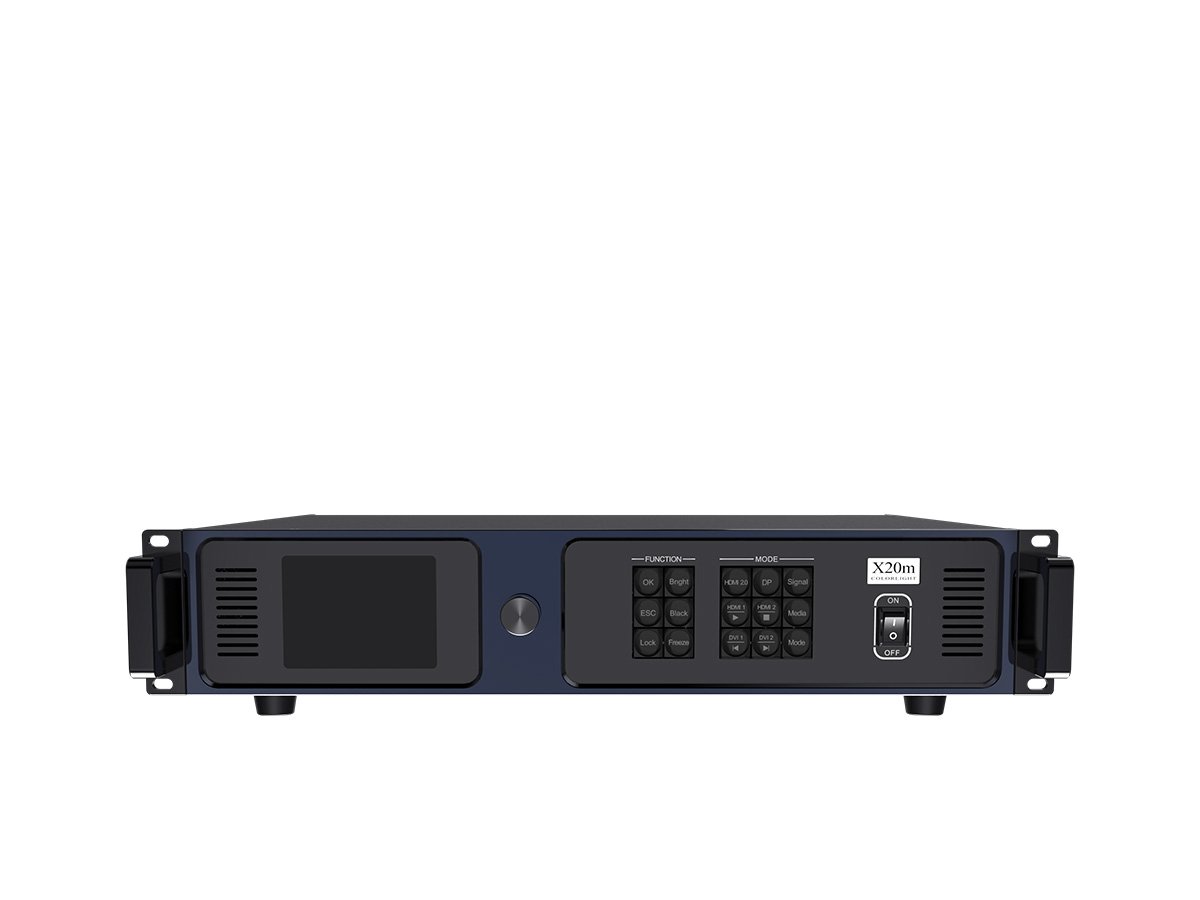

The X20m LED controller offers 13.1 million pixel capacity, 4K input, and advanced multi-window processing with Ethernet and fiber outputs for large, high-performance LED displays.
10 features of the Colorlight X20m
- Maximum input resolution of 4096×2160 at 60Hz

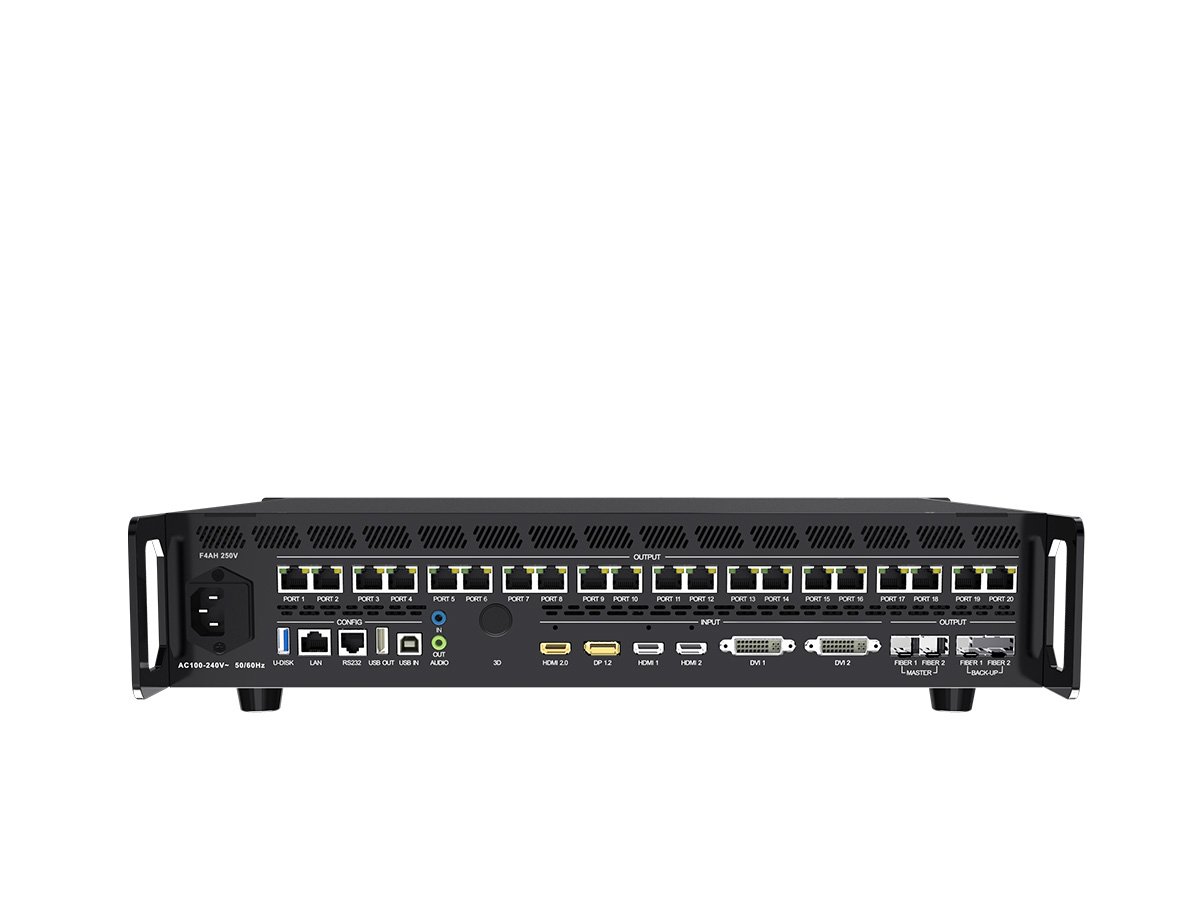

- 4K inputs: DP1.2 and HDMI 2.0, plus 2K inputs: HDMI 1.4 and DVI
- U-Disk interface with USB 3.0 for media playback and program upgrades
- Output capacity up to 13.1 million pixels with 20 Gigabit Ethernet ports or 4×10G optical fiber ports
- Supports up to 6 windows with free scaling, roaming, and seamless switching
- HDR and precise brightness/color temperature adjustments
- Better grayscale performance at low brightness
- 128 scene parameters can be saved and recalled
- 3.5mm audio input and HDMI/DP audio output support
- Multiple control options including USB, RS232, and OSD for on-screen display
Available on backorder
Description
The X20m is a professional LED display controller that combines powerful video input, processing, and output capacity in one system. Supporting 4K inputs via DP1.2 and HDMI 2.0 as well as 2K inputs with HDMI 1.4 and DVI, the X20m offers flexibility for a variety of applications. With a maximum loading capacity of 13.1 million pixels, 20 Gigabit Ethernet outputs, and 4×10G optical fiber ports (2 active, 2 standby), it is engineered to handle complex, large-scale screen setups with reliability. The X20m also delivers advanced functionality including up to 6-window display, seamless cropping and switching, precision color management, HDR processing, and grayscale enhancement at low brightness. With multiple control options, USB program upgrades, and support for saving up to 128 scene parameters, the X20m ensures stable performance, superior image quality, and adaptability for demanding display environments.
Additional information
| Weight | 16.75 lbs |
|---|---|
| Dimensions | 25.6 × 24.2 × 9.5 in |
| MSRP | $3,000 |
| Manual | Download Manual |
