$2,500.00

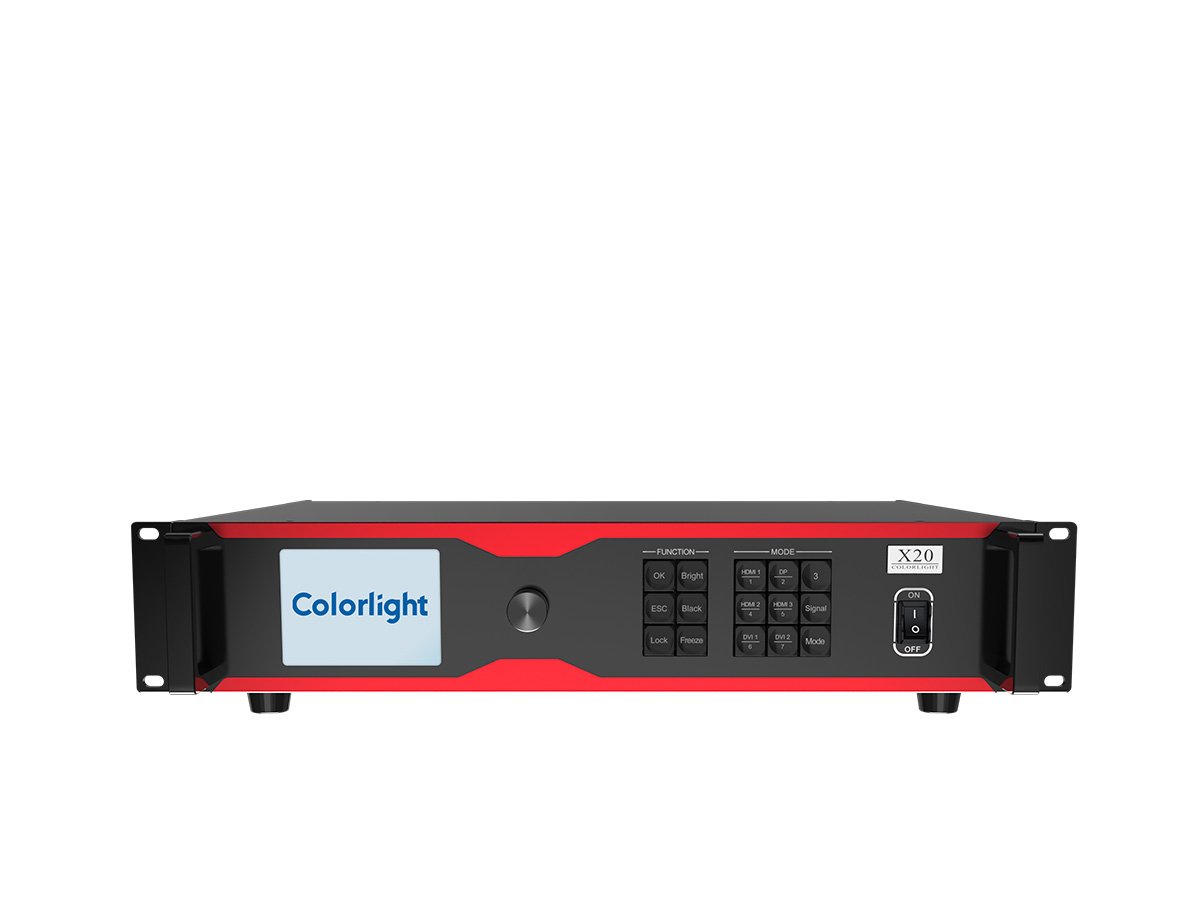

The X20 Controller delivers powerful video processing with 4K input, 13 million pixel load capacity, and advanced multi-window control, making it ideal for large LED video walls and flexible display applications.
Key Features of the Colorlight X20
- Supports 4K input via DP1.2 and HDMI 2.0, plus 2K input via HDMI 1.4 and DVI
- Maximum load capacity of 13 million pixels with up to 16,384 px width and 8,192 px height

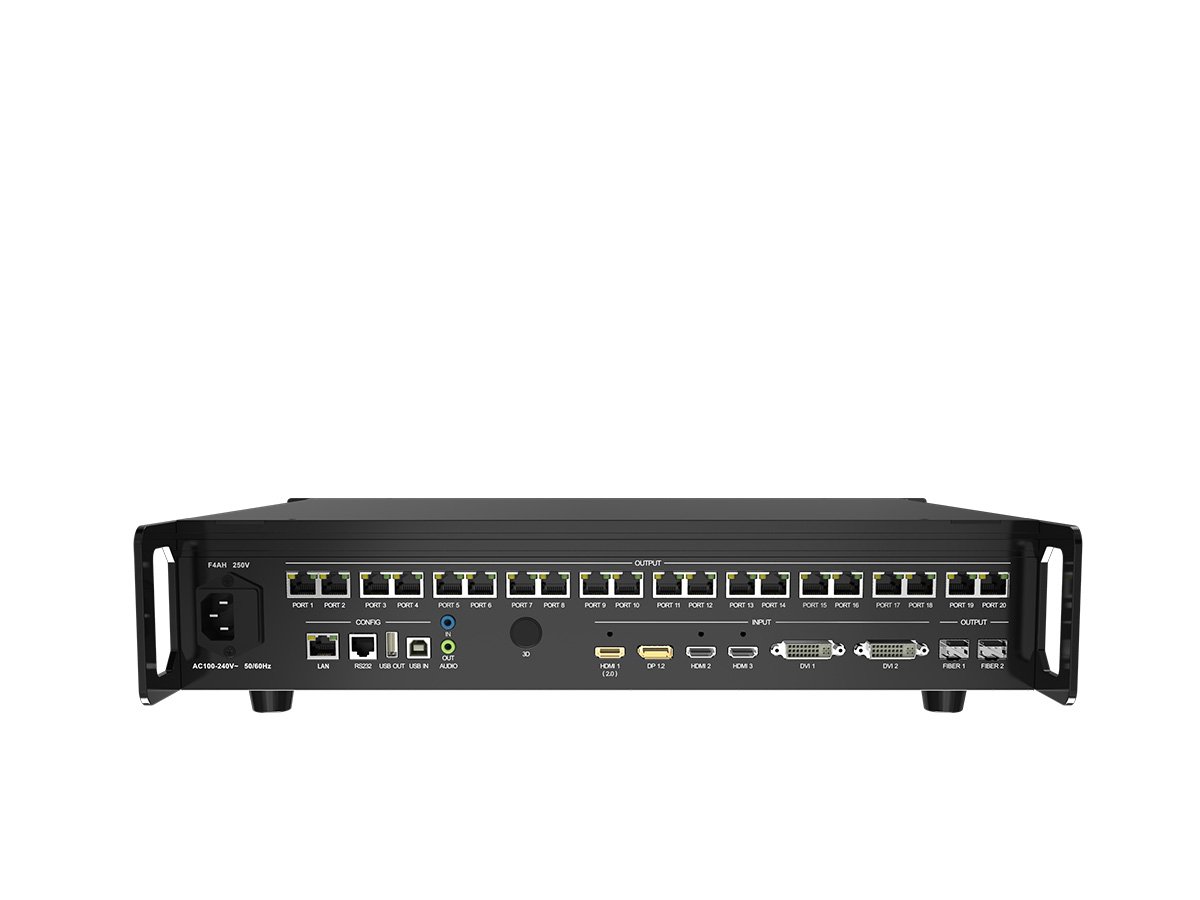

- Flexible outputs with 20× 1G Ethernet or 2× 10G fiber ports
- Handles up to 6 simultaneous windows with overlay support
- Advanced window roaming, free scaling, and cropping functions
- Seamless switching between video sources for smooth transitions
- Precise color management with brightness and temperature adjustments
- Enhanced grayscale performance at low brightness for better image detail
- Scene management with save and recall for up to 16 presets
- 3D display support with additional accessories
Available on backorder
Description
The X20 Controller is a high-performance video input and processing solution designed for professional display environments that demand flexibility, precision, and reliability. Supporting 4K inputs via DP1.2 and HDMI 2.0, as well as 2K inputs with HDMI 1.4 and DVI, the X20 provides a wide range of connectivity options. With a massive 13 million pixel loading capacity, it can easily handle large LED video walls and complex screen configurations.
Equipped with 20 Gigabit Ethernet outputs or 2× 10G optical fiber outputs, the X20 ensures fast, stable data transmission to meet diverse installation needs. Beyond raw power, it offers rich functionality including multi-window overlays, free scaling, seamless switching, and precise color management. Brightness and color temperature adjustments, grayscale optimization, and scene presets add layers of control for fine-tuned image quality.
Whether in control rooms, auditoriums, or high-end commercial displays, the X20 delivers professional-grade performance, efficient management, and high-quality visual results tailored for demanding projects.
Additional information
| Weight | 16.75 lbs |
|---|---|
| Dimensions | 25.4 × 24.2 × 9.6 in |
| MSRP | $2,500 |
