$1,500.00
The VX6 UHD video controller offers 4K input, HDR support, and 3.93 million pixel capacity with versatile inputs, multiple outputs, and ultra-low latency for professional LED displays.
10 features of the Colorlight VX6
- Supports 4K input up to 4096×2160 at 60Hz with HDMI 2.0, HDMI 1.4, DVI, 3G-SDI, and 10G fiber ports
- 3.93 million pixel loading capacity with maximum width of 16,384 pixels or height of 8,192 pixels

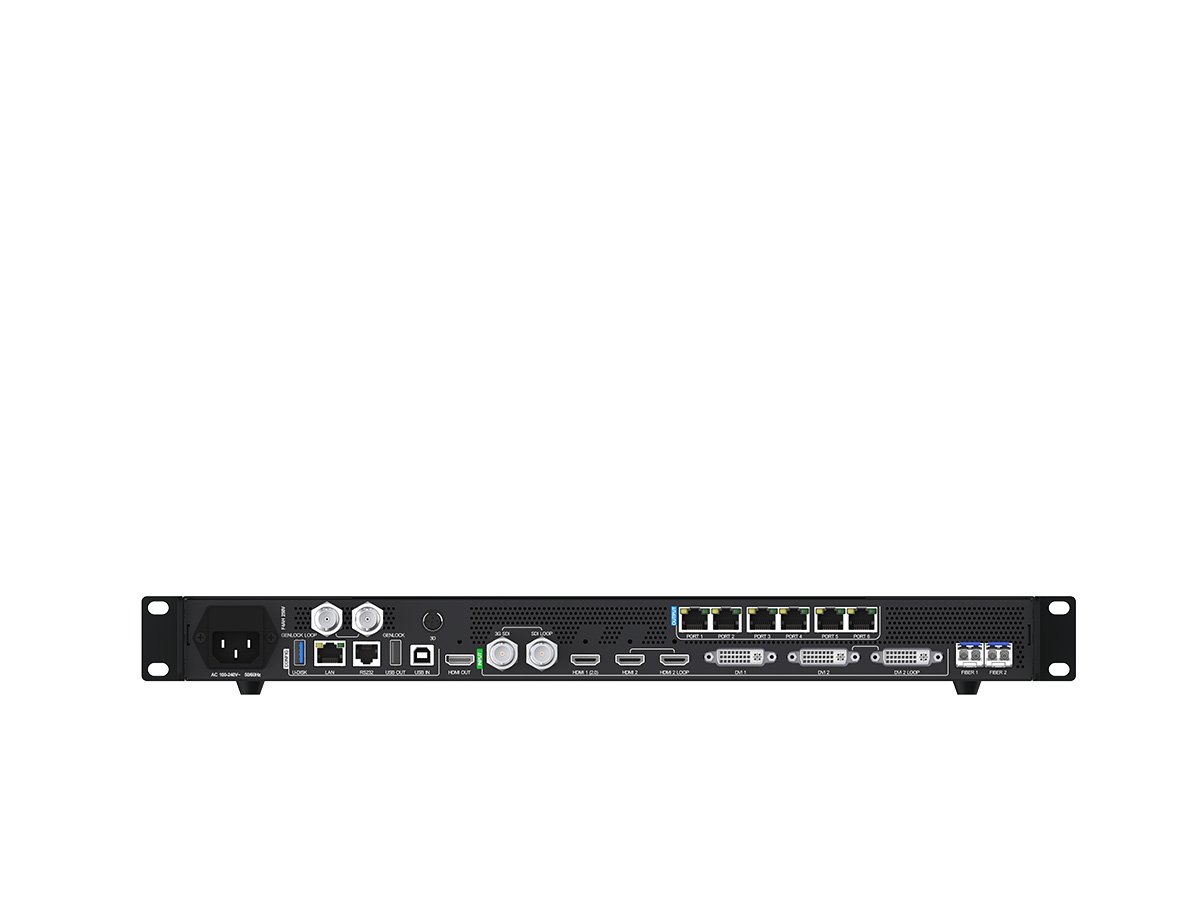

- Six Gigabit Ethernet outputs, two 10G fiber outputs, and one HDMI 1.3 preview/output
- Frame rate support from 23.98Hz to 240Hz for input and output
- Ultra-low latency with bypass mode for zero-frame delay
- Advanced video processing with cropping, scaling, switching, and three-layer display
- HDR display support for enhanced brightness and contrast
- Genlock input and loop for seamless synchronization
- Precise color adjustments for hue, saturation, brightness, and RGB temperature control
- Multiple control options: USB cascading, RS232, and TCP/IP LAN
1 in stock (can be backordered)
Description

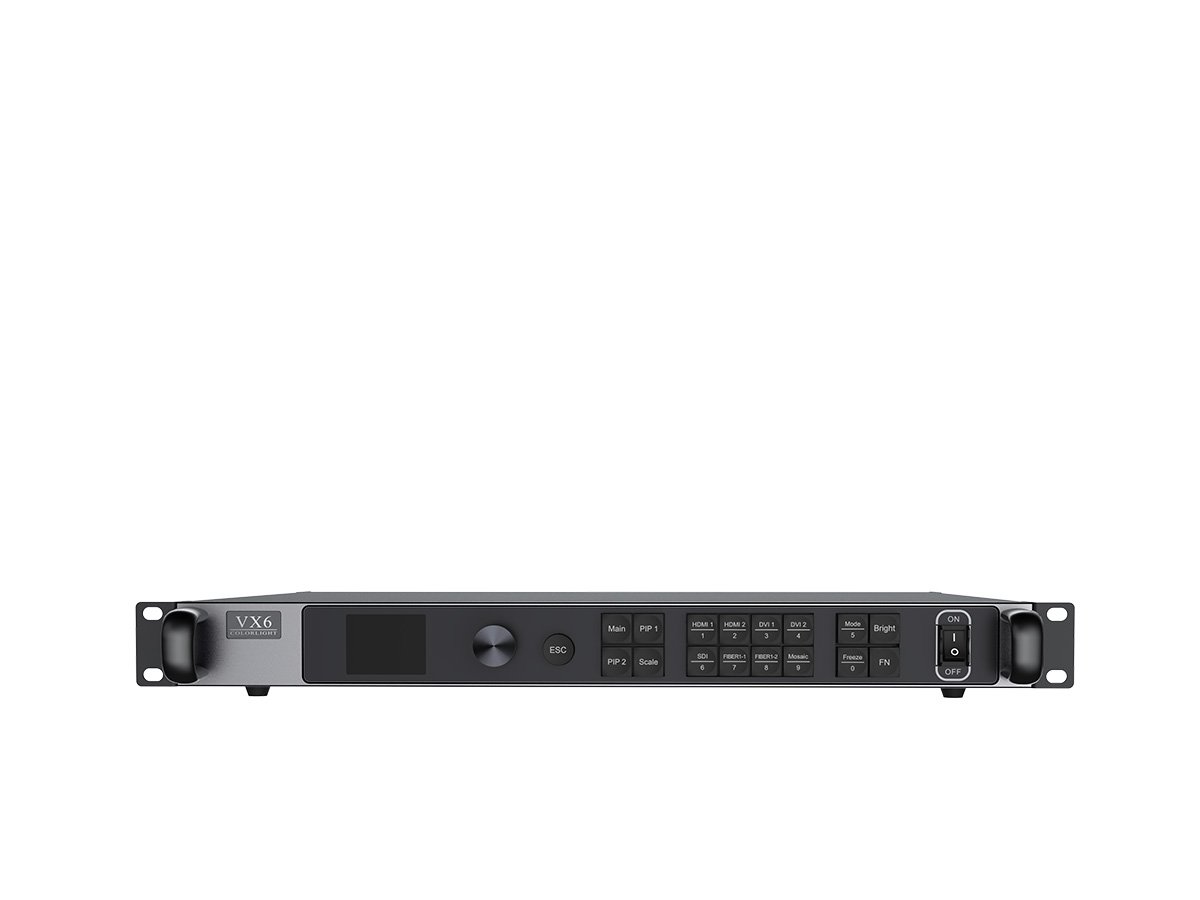

The VX6 is a versatile UHD video controller that combines advanced image processing with LED display control, making it an ideal solution for medium and high-end rental, stage production, broadcasting, and live event applications. Supporting both 4K and 2K video inputs, the VX6 features multiple input interfaces including HDMI 2.0, HDMI 1.4, DVI, 3G-SDI, and a 10G fiber port. It delivers resolutions up to 4096×2160 at 60Hz with frame rates ranging from 23.98Hz to 240Hz, and supports 8-bit and 10-bit video signals with full HDCP compliance.
With a loading capacity of 3.93 million pixels, the VX6 offers robust output options via six Gigabit Ethernet ports, two 10G fiber ports, and an HDMI 1.3 preview/output port, with built-in redundancy for enhanced reliability. Advanced video processing features include cropping, switching, broadcast-level scaling, three-layer display, and ultra-low latency with bypass mode for zero-frame delay. HDR and Genlock support ensure stunning image quality and seamless synchronization.
The VX6 also includes flexible color management with precise adjustments for hue, saturation, brightness, and color temperature, along with audio support via HDMI input and multifunction card output. Three working modes—video processor, fiber optic transceiver, and bypass—make it highly adaptable for different workflows. With multiple control options including USB, RS232, and TCP/IP LAN, the VX6 is built to deliver professional-grade performance for demanding LED display projects.
Additional information
| Weight | 10.58 lbs |
|---|---|
| Dimensions | 21.7 × 19.3 × 4.5 in |
| MSRP | $1,500 |
| Manual | Download Manual |
