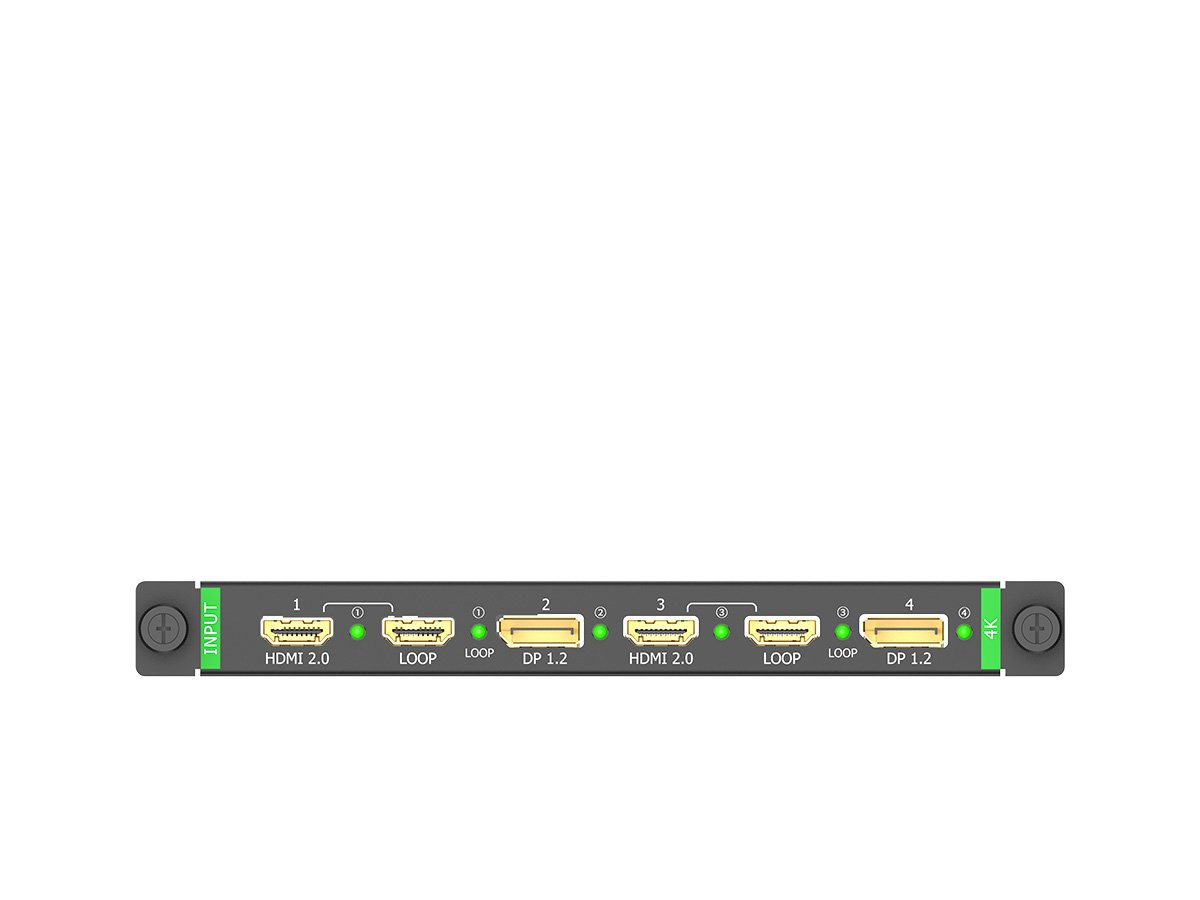

U Series 2x HDMI 2.0 + 2x DP 1.2 Input Card

Two groups of 4K input ports: Each group includes 1×HDMI 2.0 & LOOP ports, and 1×DP 1.2 port. For each group, both HDMI 2.0 and DP 1.2 can be connected simultaneously, but only one can be displayed.

Product Details

• 2×HDMI2.0
• Backwards compatible with HDMI 1.4/1.3.
• Each port supports a maximum pixel clock of 600MHz; video inputs upto 4096×2160@60Hz/8192×1080@60Hz.
• Supports custom resolutions through EDID configuration:
  • Maximum width: 4096 pixels (when the width is 4096 pixels,
    supported resolutions include 4096 × 2160@60Hz, 4096 ×
    2160@50Hz, and 4096×2160@30Hz).
  • Maximum height: 4095 pixels (2160×4095@60Hz).
    Width limit: 8192 pixels, height limit: 8188 pixels (forced by external
    signals).
• 8/10/12-bit input.
